PVM SOLUTIONS
Welding
Pick And Place
Dispensing
Machine Tending
Motion Controller
Robo Weld 3.0
FeaturesThe Machine is more suitable for Higher Productive Environment. It runs on Programmable Logic Controller with the ladder logics developed for performing a continuous or repetitive operation. This Machine can perform Linear, Circular and Intermittent Welding.
X Axis - Travel Length - 800 mm
Y Axis - Travel Length - 350 mm
Z Axis - Travel Length - 150 mm
A Axis - Rotation – 0 - 360 Deg
Welding Speed: 0 - 25 mm / Second
Welding Thickness: 0.5 - 25mm
Equipment Size: 1350 mm (L) x 910 mm (W) x 1740mm (H)
Welding Power: The Machine is capable to accommodate MIG/MAG , TIG and Plasma Welding Machines

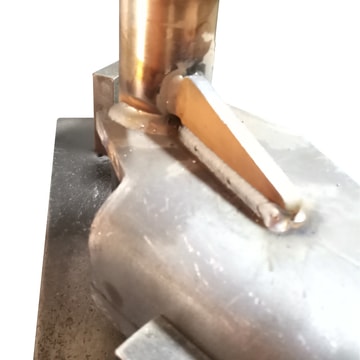

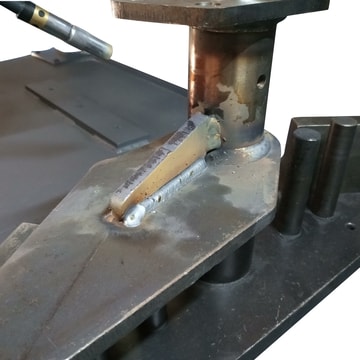

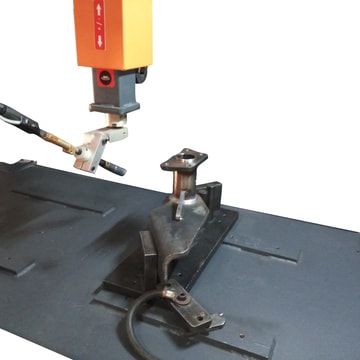

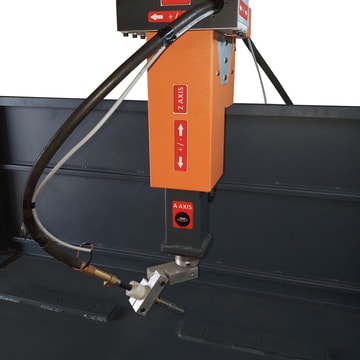

Robo Weld 4.0
FeaturesThe Machine is designed to deliver a quality weld by programming the sequence to the suitable job requirements. The Machine consists of 4 axes in which all the axes can be interpolated to perform a trajectory motion path to perform a smooth weld in critical areas. The Axes can perform Linear, Helical and Circular Interpolation simultaneously. The Machine runs on CNC G Code programming language which is most convenient and easy method used in the industries.
X Axis - Travel Length - 800 mm
Y Axis - Travel Length - 350 mm
Z Axis - Travel Length - 150 mm
A Axis - Rotation - 0 - 360 Deg
Welding Speed: 0 - 100 mm / Second
Welding Thickness: 0.5 - 25mm
Equipment Size: 1860 mm (L) x 910 mm (W) x 1980mm (H)
Welding Power: The Machine is capable to accommodate MIG/MAG , TIG and Plasma Welding Machines
Dispensing Robot
PVM bench-top dispensing robots are easy to program, simple to operate and compatible with all valve types. Designed and configured specifically for fluid dispensing applications, PVM provide total control over fluid placement, from beads, arcs and circles to repeated timed dots. This system runs on specific logics developed for dispensing fluid application using PLC. The Position Co-ordinates can be feed using HMI - Human Machine Interface for various positioning sequences.
The Dispensing Robot has a working area of 400mm X 400mm.
Easy to program and simple to operate
Programmable interface via HMI
Fast, increase productivity
Compatible with all syringes, valves and Jet dispensing systems
Suitable for wide range of fluid dispensing applications
Rugged and reliable construction
Small footprint
Dispense dots of solder paste
Form-in-place gasket
Filling
Potting
Encapsulation
Bonding
Coating

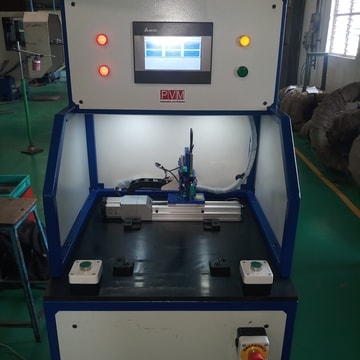

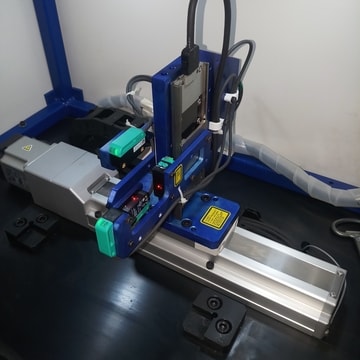

Measurement System
FeaturesThis Measuring System is highly precision built with Laser Sensors moved with better positional accuracy and repeatability using Linear Motors. The System has 3 axes can measure Linear Dimension, Thickness and Diameter of the parts. This system can replace the conventional method of measuring the parts and reduces the Measurement time drastically. The Measured Data can be stored in excel format in the system and can retrieved later for checking the defect parts. The System also can be customised based on the requirements.
X Axis - Travel Length - 150 mm
Y Axis – Travel Length – 50 mm
Z Axis – Travel Length – 50 mm
Speed: 0 – 150 mm / Second
Repeatability: 90 Microns
Accuracy: 10 Microns
Auto Loading For Centerless Grinding
FeaturesThe loading system is customized to centreless grinding machine of any make and model. The Loading of parts is placed in the loader chute and the parts are feed into the grinding machine. The system runs on PLC and easy to operate. The Production quantity are measured and stored in the HMI and can be retrieved later.
X Axis - Travel Length - 250 mm
Customizable to the Requirement
Loading Capacity : 0 – 300 Pcs / Hr
Part Size : 0 – 50 mm Diameter , Length 0 – 50 mm

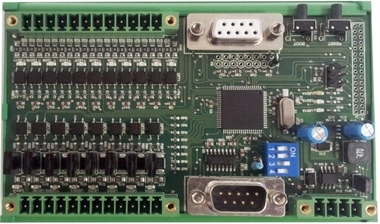

NG Quark G Code
NG Quark is used in low performance machines.I It manages up to 3 Axes in PULSE/DIR with interpolation Linear, Circular, Helical. NG Quark is connected to ISONS byRS232 HIGH Speed.
Interpolation up to 3 AXES PULSE/DIR 30 Khz Clock
1 Axis PULSE/DIR positioned 125 Khz clock
4 Axes CanOpen positioned
Interpolation Linear, Circular, Helical
Management Tool change
Management Spindle 0-10V or Modbus
PLC Cycle
Movements buffer up to 16 block
Minimum sample 4 mSec
Tangential and Gantry axis
Calculation of edge threshold in 3 dimension
1 - CanOpen Master
11 - Digital Inputs PNP 24 Vdc
8 - Digital Outputs PNP 24 Vdc 1,2 A
1 - Analog Input
2 - Analog Outputs +/- 10V
3/4 - Axes Pulse/Dir line drive or Open Collector
Small footprint

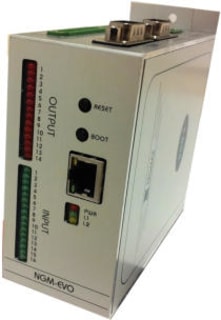

NGMEVO G Code
NGMEVO CNC is a good price/performance compromise. It is able to control up to 6 Axes PULSE/DIR or canopen in Interpolation linear, circular, speedy linear interpolation. Already in basic version it can manage complete machines of small/medium complexity. Linked by ETHERNET to PC with ISONS is an excellent low price CNC.
Interpolation up to 6 AXES PULSE/DIR 125/500 Khz Clock
Interpolation up to 6 AXES CanOpen
32 AXES Postion mode CanOpen
6 AXES Postion mode PULSE/DIR
Interpolation Linear,Circular,Helical
Management Tool change
Management Spindle 0-10V or Modbus
Management HandWeel
PLC Cycle
Movements buffer up to 128 block
Minimum sample 1 mSec
Tangential and Gantry axis
Calculation of edge threshold in 3 dimension
1 - CanOpen Master
16 - Digital Inputs PNP 24 Vdc - up to 80
14 - Digital Outputs PNP 24 Vdc short circuit protection expandable up to 70
8 - Analog Inputs
6 - Analog Outputs +/- 10V
6 - Encoder Inputs Line Drive
1 - Analog Otputs 0-10V
6 - Axes PULSE/DIR line drive or Open Collector
2 - RS232 1/RS485 with ModBus RTU
1 - ETHERNET 10/100 Mb

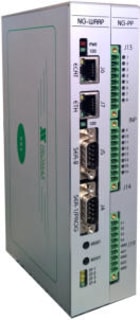

N35/NGWARP G Code
NGWARP CNC is the TOP of family G CODE. It can control analog axes +/- 10V with encoder feedback, CanOpen ETHERCAT axes in interpolation mode, PULSE/DIR 25 Mhz clock. Its great power and flexibility makes it ideal for high performance machines. Due to ETHERNET port we can obtain an high speed link with PC.
Interpolation/Position up to 32 AXES PULSE/DIR 25 Mhz Clock
Interpolation/Position up to 64 AXES CanOpen - Ethercat
Interpolation/Position up to 16 AXES +/- 10V
Interpolation Linear,Circular,Helical
Management Tool change
Management Spindle 0-10V or Modbus
Management HandWeel
PLC Cycle
Movements buffer up to 4096 block
Minimum sample 0,5 mSec
Tangential and Gantry axis
Calculation of edge threshold in 3 dimension
64 - Axes CanOpen - Ethercat
32 - Axes Pulse/Dir line drive
16 - Axes +/- 10V
2 - CanOpen Master/Slave
128 - Digital Inputs PNP 24 Vdc
112 - Digital Outputs PNP 24 Vdc 1,2 A
8 - Analog Inputs
32 - Fast Inputs interrupt Mode
16 - Channels Encoder Line Drive
16 - Analog Outputs +/- 10V
2 - RS232 1/RS485 with ModBus RTU
1 - ETHERNET 10/100 Mb
1 - ETHERCAT CoE

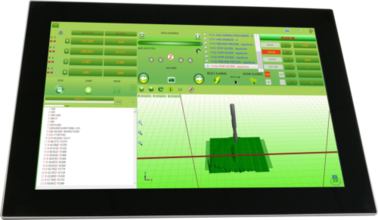

PC Panel 10" 16:9 Android
PC Panel 10" Multi touch Android for Industrial Application.
Display 10" Multi Touch 1280x800 wide
CPU RK3288 Cortex A17 Quad Core 1.8 Ghz
GPU ARM Mali T764
RAM 2Gb LPDDR3
STORAGE SSD 16/32Gb
1 Gb ETHERNET
1 WiFi
4 USB 2.0
O.S. Android 6.0 Promax Release
IP65
Power24 Vdc
Panel Mounting

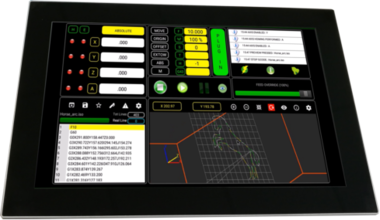

PC Panel 10" 16:9 Windows 10
PC Panel 10" Multi touch Windows 10 for Industrial applications.
Display 10" Multi Touch 1280x800 widen
CPU Intel® Celeron N3350 2,4 Ghz
GPU Intel® Gen 9 HD/500 HD/505
RAM 2/4Gb LPDDR4
STORAGE eMMC 32 Gb
2 Gb ETHERNET
3 USB 3.0
O.S. Windows 10 IoT Enterprise LTSB
IP65 on front
Power24 Vdc
Panel Mounting
PC Panel 10,4" 4:3
PANEL PC Compact and complete all of the devices. Suitable for HMI applications medium-complex Fanless.
10.4" TFT SVGA LED Panel with resistive touchscreen
Embedded Intel® Atom™ processor D2550 1.86 GHz
Power Supply 12-30 Vdc
RAM up to 4 Gb
4 x USB
4 x RS232 - 1/RS442/RS485
2 x Ethernet 10/100/1000 Mb
Windows® XP,7,8,Embedded
SSD,HDD 2,5
Fanless

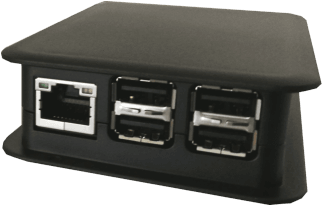

DRPC02
DRPC02 is a good solution for industrial applications. It allows to use an external MONITOR and KEYBOARD.
CPU ROCKCHIP RK3288 1.8 Ghz
Power 5 Vdc with 220 Vac Adapter
RAM 2 Gb LPDDR3
4 x USB 2.0
1 x Ethernet 10/100 Mb
1 WiFi
Micro SD 16/32 Gb
1 x HDMI
Android 6.0 Customized

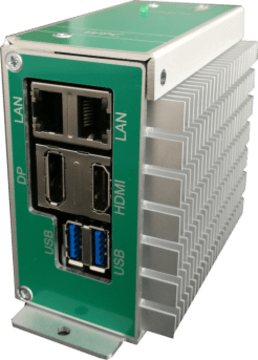

WPC
WPC is an ideal solution for industrial applications. Compact and functional, it allows the use of MONITOR and KEYPAD external
S.O. Windows 10 Enterprise LTSB
3 x USB 3.0
1 x USB OTG
1 x HDMI
1 x DP
2 x Gb Ethernet
CPU Intel® Celeron N3350/N4200
RAM 2/4/8 Gb LPDDR4
Storage 32/64/128 GB eMMC
Alimentatore 24 Vdc
